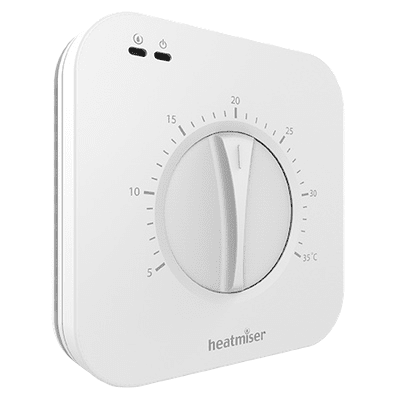

Heatmiser DS-SB v3 Set Back Dial Thermostat

The Heatmiser DS-SB v3 is our flush mount set back thermostat ideal for those wanting a simple but energy efficient control system. The DS-SB v3 features a set back function, a function that will automatically reduce the set temperature by 4C when the time clock is off.

The DS-SB v3 setback thermostat has been designed to work in conjunction with our UH8 wiring centre and TM4 v2 Programmer, but could equally be used as a standalone dial thermostat.

Please note this thermostat is flush mounting, so a back box is required prior to installation.

Functions include;

• Slide switch mode select (Constant, Off, Time Clock)
• Flush Mount
• Remote Air Sensor Function: Probe Optional
• 05-35C Temperature Range
• 4C Set Back Function
• 230V 3A Switch Rating
• CE Approved
• Dimensions:  92mm x  92mm x 14mm (Height, Width, Depth, once installed)

* 4 core cabling is required from the time clock in order to use the set back function.
