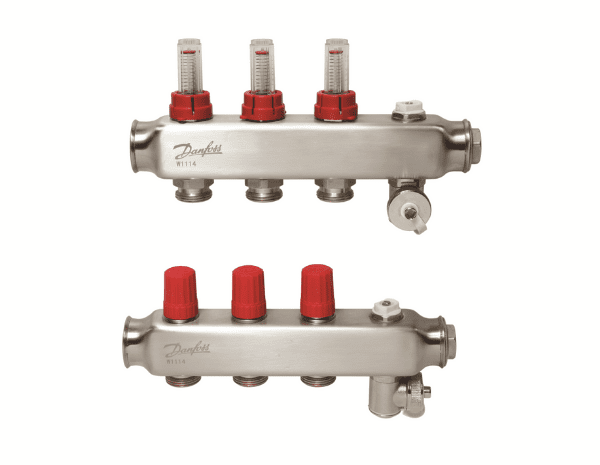

Danfoss SSM Manifold 3+3 with Flowmeter

The SSM manifold is used for controlling water flow in under floor heating systems. Each tube of the floor heating system is connected to the manifold, making it possible to control water flow or heat supply to each room in the building individually.

The manifold consists of a supply and return manifold. The supply manifold includes the possibility for individual shut-off of each circuit on the flow meter or shut-off valve. The return manifold is equipped with integrated Danfoss presetting valves securing optimal hydraulic balance in the system. The valves can be controlled electronically by thermal actuators or act as self-acting units by means of remote temperature adjusters. The manifold is supplied in modules of up to 12 outlets. Ball valves are available as an option for positive shut-off between the manifold and system. The SSM manifold is supplied with a manual air vent and a purge valve.
